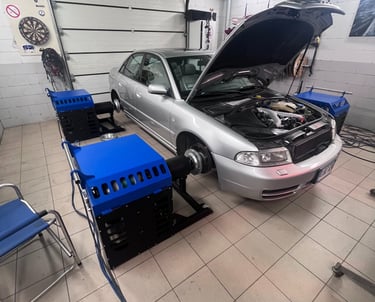

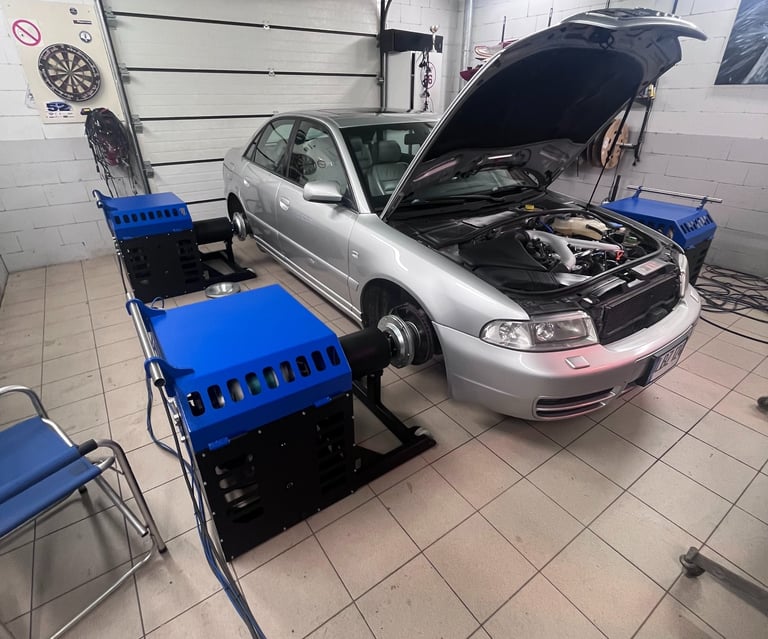

Single axle or all wheel drive hub dyno

Awd hub dyno

350km/h maximum speed, 4000hp maximum horsepower in AWD mode, 2000hp on single axle. Dyno requires 3 phase 220v to split the load.
Package includes:
4 pieces of hubs with all the required wiring needed to connect them to control cabinet.
4 pieces of five bolt universal adapters, 5x90 to 5x135.
4 pieces of four bolt universal adapters, 4x90 to 4x135.
1 piece of control cabinet which dimensions are 80x120 and 30cm in depth. It's not portable, preferably wall mount.
1 piece of dyno pc with wifi and bluetooth card, with software preinstalled everything configured, dyno calibrated and ready to go. Uses network connection to connect with control cabinet.
AWD hub dyno price starts from 60000 eur + vat.
If you have any questions regarding pricing, please contact us.

Hub adapters

Custom adapters can be made. Dyno comes with 2 sets of universal adapters, 4 and 5 bolt pattern. It can be used with 12 or 14mm diameter bolts, in both cases when using as universal it requires adapters which are included in the kit. At the time of order it can be customized for different bolt patterns which would not require adjusting or adapters, by default it comes with 5x120mm one. Adapters are machined from 42CrMo2 steel. Custom adapters can be made depending on customer specifications, different bolt patterns, and other stuff, price starts from 1000 eur for 2 adapters. Adapters are 285mm in diameter for ease of mounting.

350km/h maximum speed, limited by dyno bearings. 2000hp on single axle. Dyno requires 3 phase 220v to split the load if used on 1000+hp
Kit includes:
2 pieces of hubs with all the required wiring needed to connect them to control cabinet.
2 pieces of five bolt universal adapters, 5x90 up to 5x135.
2 pieces of four bolt universal adapters, 4x90 up to 4x135.
1 piece of control cabinet which dimensions are 80x120 and 30cm in depth. It's not portable, preferably wall mount.
1 piece of dyno pc with wifi and bluetooth card, with software preinstalled everything configured, dyno calibrated and ready to go. Uses network connection to connect with control cabinet.
Single axle dyno price is 35000 eur + vat.
If you have any questions regarding pricing, please contact us.

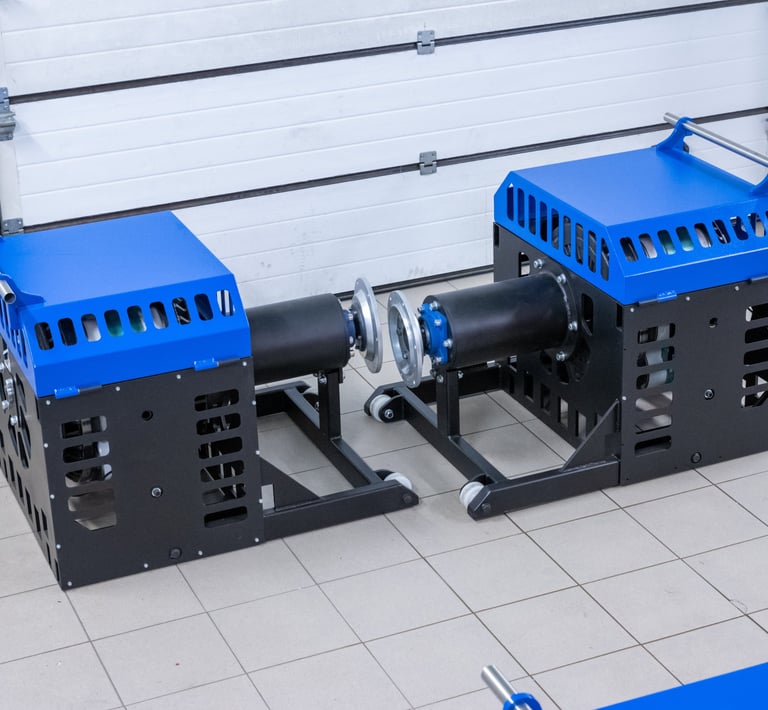

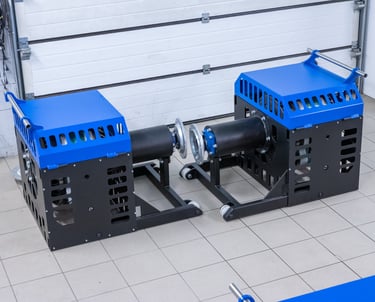

Single axle hub dyno
